The Aquila20 matters because it packs sensor-assisted stabilization, a ready-to-fly radio and goggles, and a chassis that finally has enough grunt for basic acro. The kit aims squarely at trainees who hate tinkering yet want a path to real FPV skill.
TL;DR
The Aquila20 kit ships with a radio, goggles and a 2S whoop-style drone with bottom-facing optical sensors. It flies extremely stable in assisted modes, runs long on a 1100mAh HV cell, and supports full manual acro. Sensors only work close to ground and on textured surfaces. Great trainer; not a precision race quad.

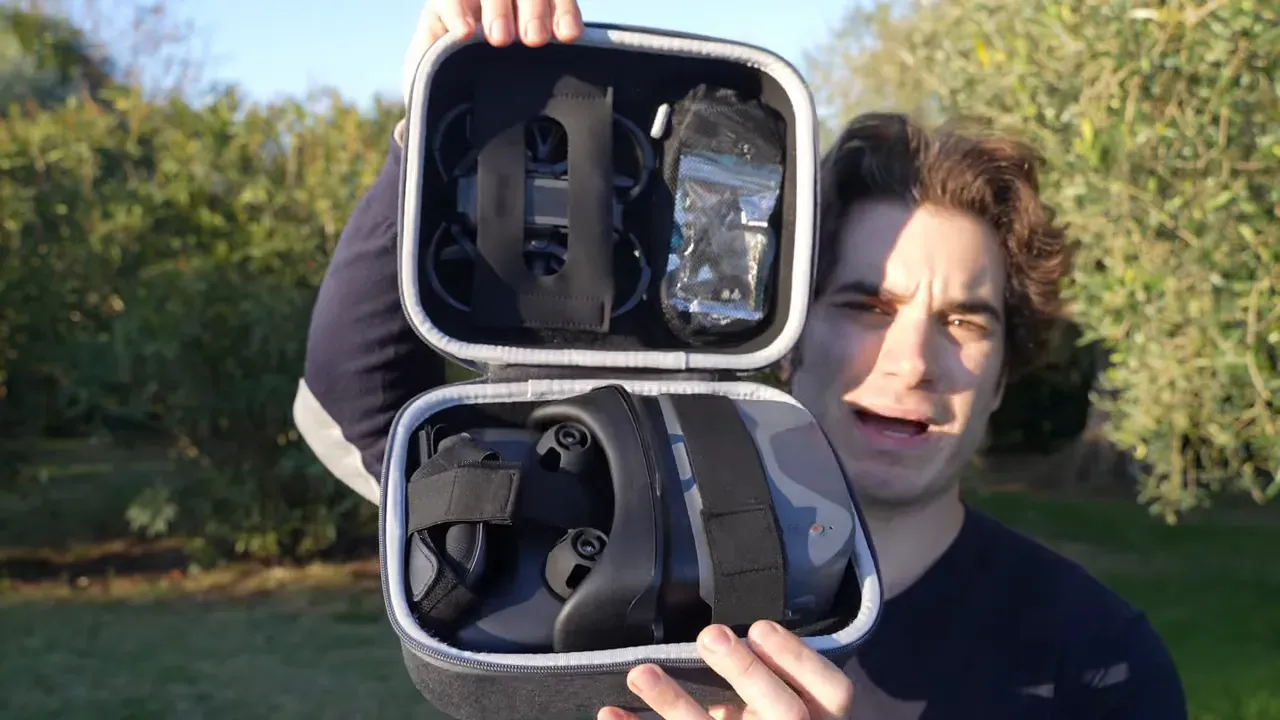

What arrives in the pouch
The kit arrives neatly: Aquila20 quad, VR04 goggles, Light Radio 4 SE, a proprietary 2S 1100mAh HV battery plus a spare, USB-C charging adapter, prop spares and a small tool kit. BetaFPV includes a USB adapter for FC access.

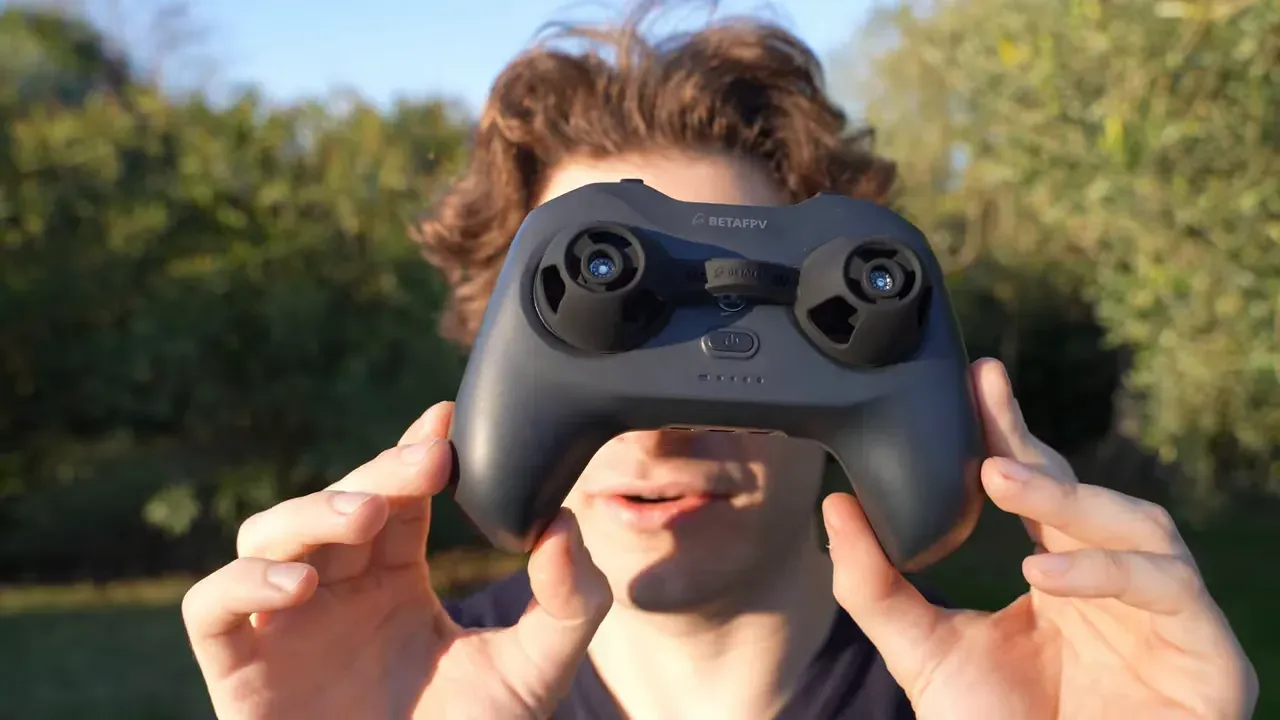

Radio — Light Radio 4 SE
The Light Radio 4 SE mirrors the standard Light Radio 4 while trimming costs by dropping two five-position trim switches. It keeps the same gimbals and a 2000mAh battery for long runtimes. Built-in ExpressLRS 2.4 GHz runs at up to 100 milliwatts.
The SE handles basic whoop ranges and medium-distance flights. It supports Bluetooth for wireless simulator control and has a USB-C port for charging or firmware updates. It lacks a rear module bay, so long-range users will need an upgrade later.
Goggles — VR04 entry-level set
The VR04 goggles are single-receiver units without diversity. Antennas are fixed. Expect entry-level range. BetaFPV redesigned the face foam and nose sealing, and fitted a 2000mAh internal battery with USB-C charging and an option for an external battery pack.
Menus are simple. The 5D joystick runs channel scanning and a quick auto-search feature. Factory brightness shipped low on the pre-release unit used for testing, but brightness, contrast and saturation are adjustable once the menu is found.

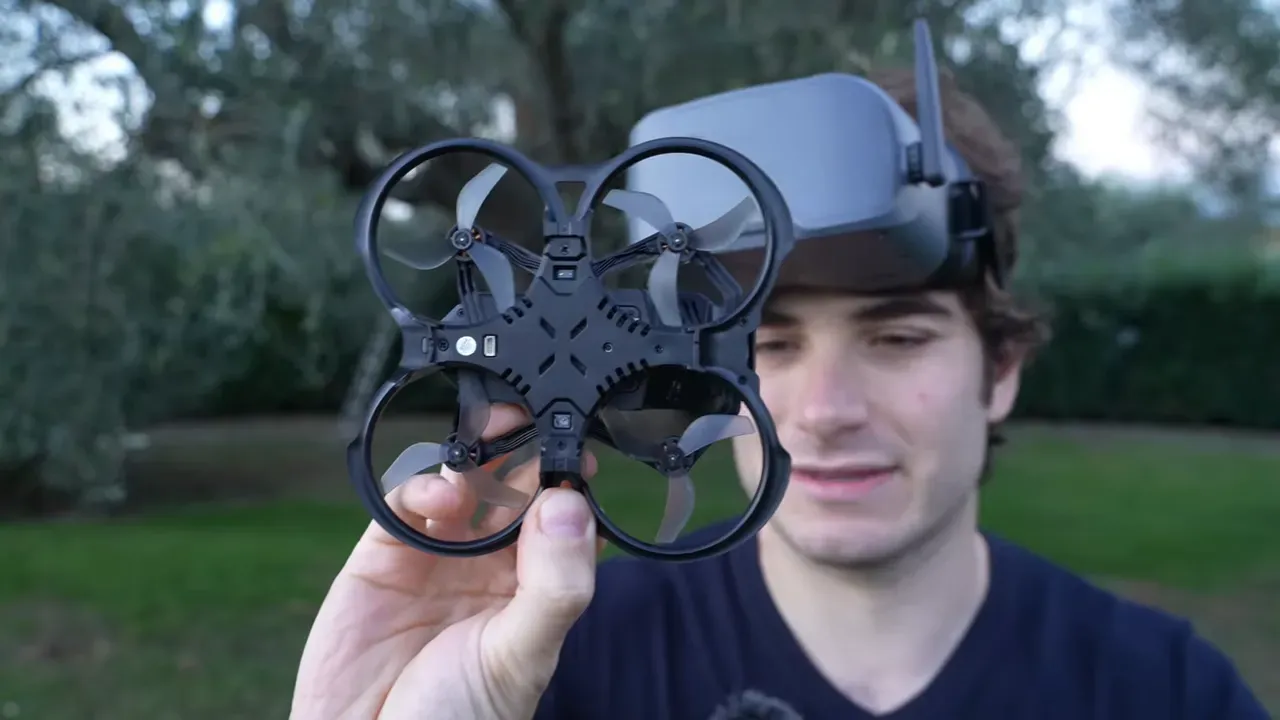

The drone — Aquila20 hardware

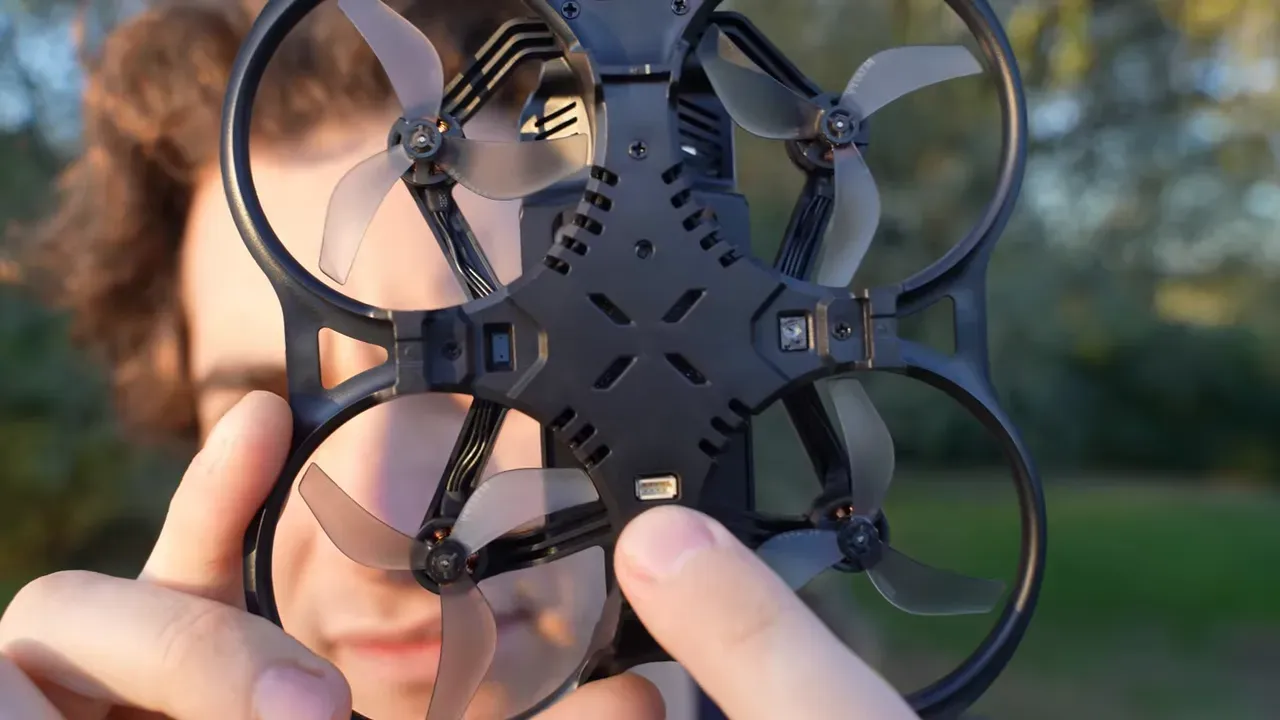

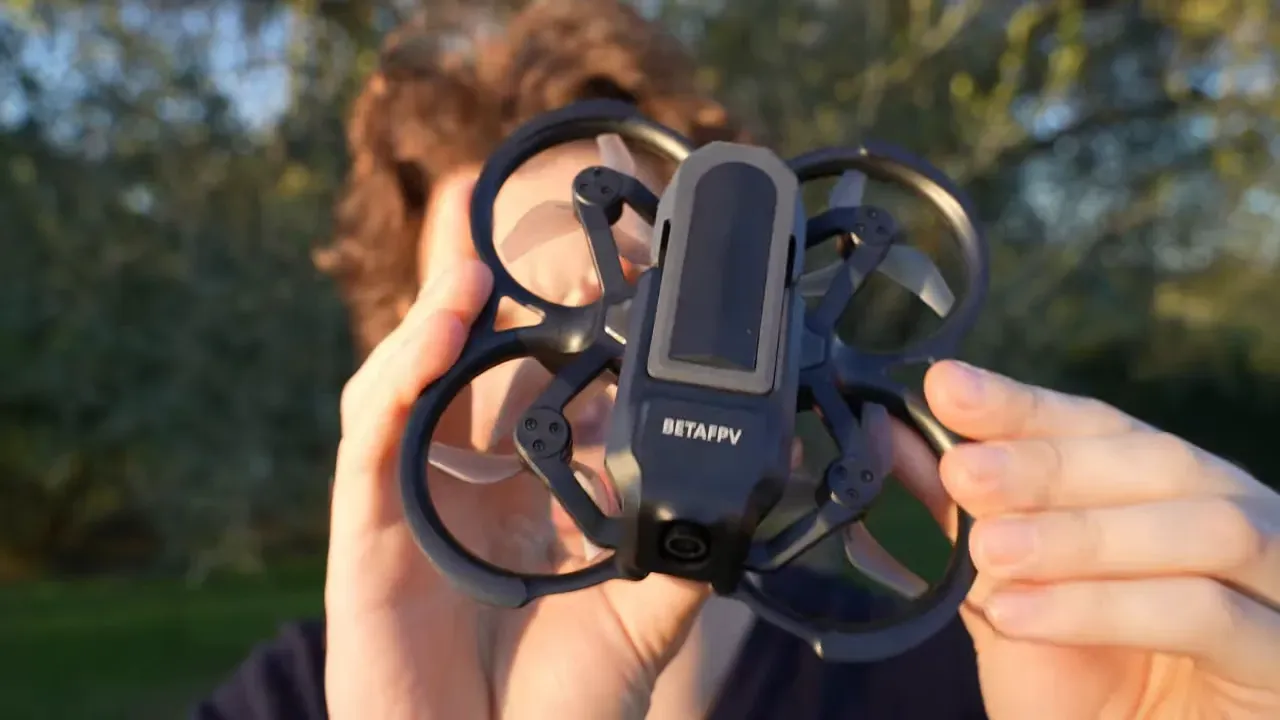

Aquila20 moves up from the 16 with bigger motors and 2.2-inch props on a 2S platform. The battery now has a proper power button. Bottom-facing optical sensors and three-point sensor array assist position and altitude control at low altitude.
Expect flight times around 10 minutes on a calm, conservative flight profile. Push the throttle and the practical flight drops into the five to six minute bracket. VTX runs up to 350 milliwatts, which boosts video link range for open-field use.

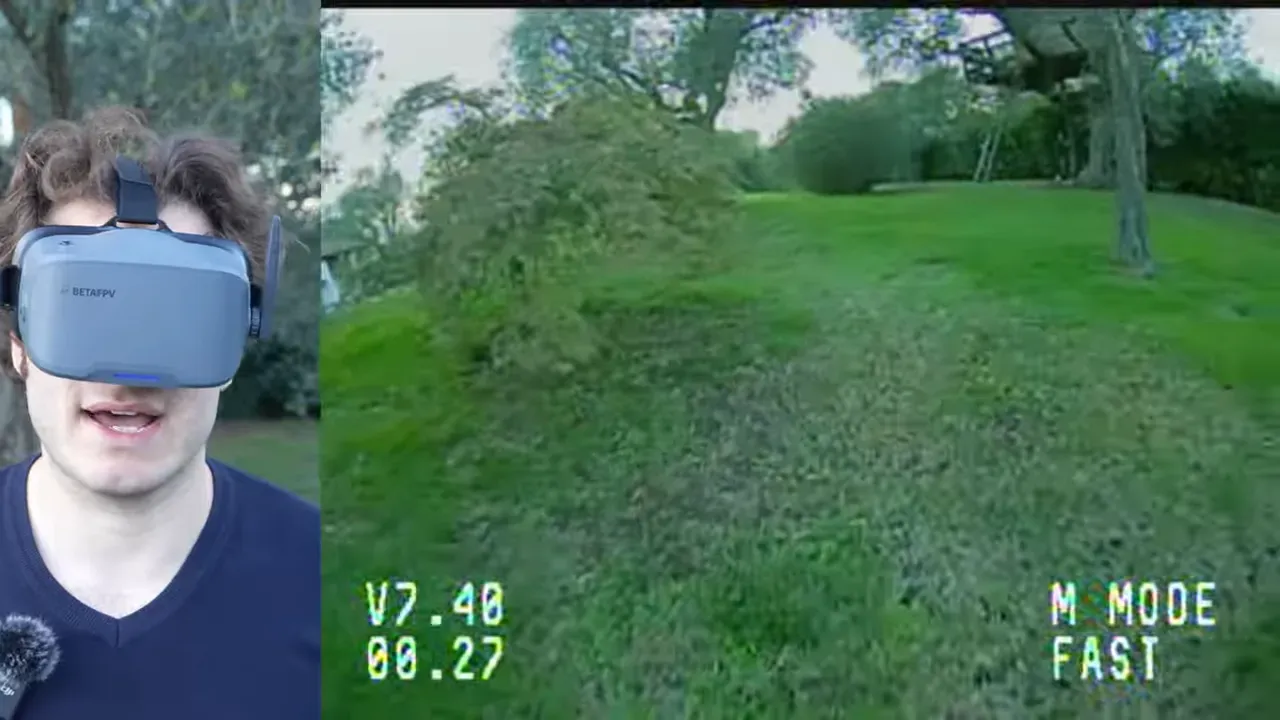

Flight impressions — stability and modes
Stabilized assisted mode feels locked in. The optical sensors keep position and altitude steady when the drone remains below approximately three metres and above a textured surface. That makes initial FPV control far less intimidating.
The sensor system fails when the ground below lacks texture or reflects light—think pools, shiny tiles or high altitude. When sensors lose lock the craft becomes hard to control. The lack of GPS means recovery depends on pilot skill and quick mode switching.
Angle mode gives predictable, precise feel for practice. Switching to higher speed settings improves responsiveness, but mode switching is locked while airborne on this firmware. Pilots should set desired mode before takeoff when they practise transitions.

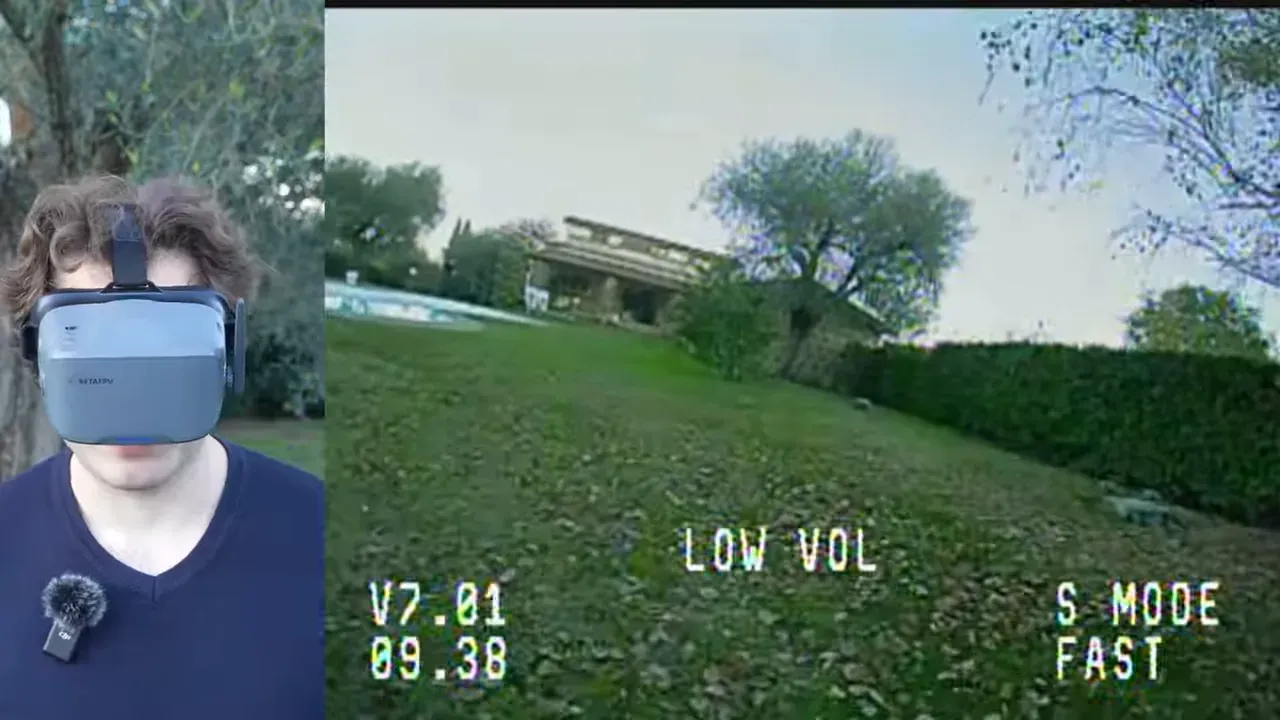

Battery, VTX and efficiency
The 1100mAh HV cell showed impressive efficiency during gentle flights—ten to twelve minutes appears achievable under light load. Under aggressive inputs and manual acro, expect closer to five minutes. VTX at 350 milliwatts improved signal stability in open areas.
Acro and manual mode
Manual acro works. The Aquila20 has enough power to learn flips, rolls and basic maneuvers. It lacks the razor-sharp precision of race quads, though—flight inputs can feel slightly jumpy and require compensation training on a simulator first.
The battery weight affects handling. Pilots will notice a bit of momentum during rapid transitions. For training, the trade-off is acceptable: recoverability and durability outweigh world-class precision at this price point.
Final verdict
Aquila20 hits the sweet spot for newcomers who want to progress toward true FPV without starting on a stripped-down whoop. It handles stabilized learning, angle practice and basic acro. The sensors reduce early frustration—so long as flights stay low and textured.
Recommendation: buy if the goal is reliable training with minimal setup. Skip it if precision acro or racing is the immediate target. Long-term pilots will still upgrade radios or goggles for higher performance.
FAQ
Does the Aquila20 include everything needed to start flying?
Yes. The kit contains the drone, Light Radio 4 SE, VR04 goggles, an 1100mAh HV battery and spare props. It also includes charging and FC connection adapters.
How good are the optical sensors for position hold?
They work well under three metres over textured surfaces. They fail on reflective or featureless surfaces and at higher altitudes. There is no GPS fallback.
Can the Light Radio 4 SE handle other drones?
Yes. It uses ExpressLRS and works with most current radios. It lacks a module bay for large range radios, so extreme-range pilots will upgrade later.
Is acro mode suitable for beginners?
Not immediately. Practice on a simulator first. Acro is available and recoverable, but requires more input finesse than stabilized modes provide.
Takeaways
Aquila20 makes early FPV less hostile—optical assist keeps crashes down so trainees keep practising.
The Light Radio 4 SE is competent and future-proof via ExpressLRS, but lacks a bay for module expansion.
Flight times impress when gentle—expect 10 to 12 minutes of low-speed training, five to six when pushed.
Manual acro is possible but not pin-point precise. Use a simulator before attempting aggressive manoeuvres outdoors.
This article was based from the video Easy and Affordable Way to Learn FPV Drones! BetaFPV Aquila20
