Foxeer Revo - HD ❓📷

5 years ago   •   1 min read

By Alex

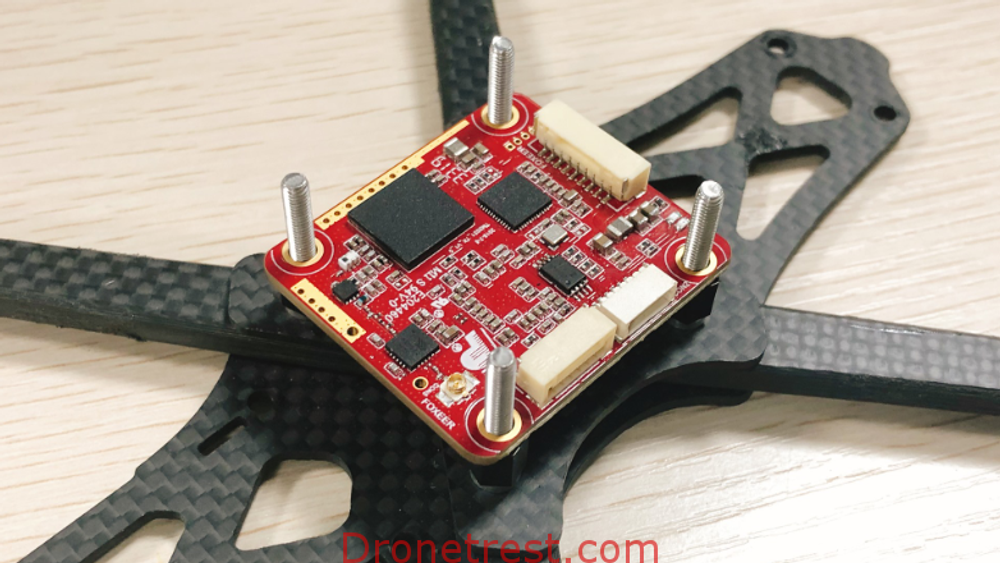

So if you have been watching social media Foxeer have released this snapshot with the #HDVTX on twitter and no other information.

But what can we guess?

After all a picture can say a 1000 words….

Find the clues

What does every split style camera have that this one doesnt?
Theres no cable between the camera and the VTX? Removable maybe look at that large header at the back.

Looking at the VTX I think its backwards… The large header should be at the front to connect to the camera, all the split style cameras we have seen in the past use a camera with a lot more pins compared to are normal FPV style cameras.
The u.fl connector is normal at the back closer to where the antenna would be mounted…

That leaves two headers… I would guess 1 for control and 1 to output to the FC for OSD integration.

What else is missing?

  • Buttons…. I dont see any, so it has to be controlled via smart audio.
  • SD card slot…. I hope its on the underside.

Camera lens?

Anyone notice the writing on the camera lens?

Does that say 3MP as in 3 Mega Pixels ?

I guess we will just have to wait and see what gets released 😊
