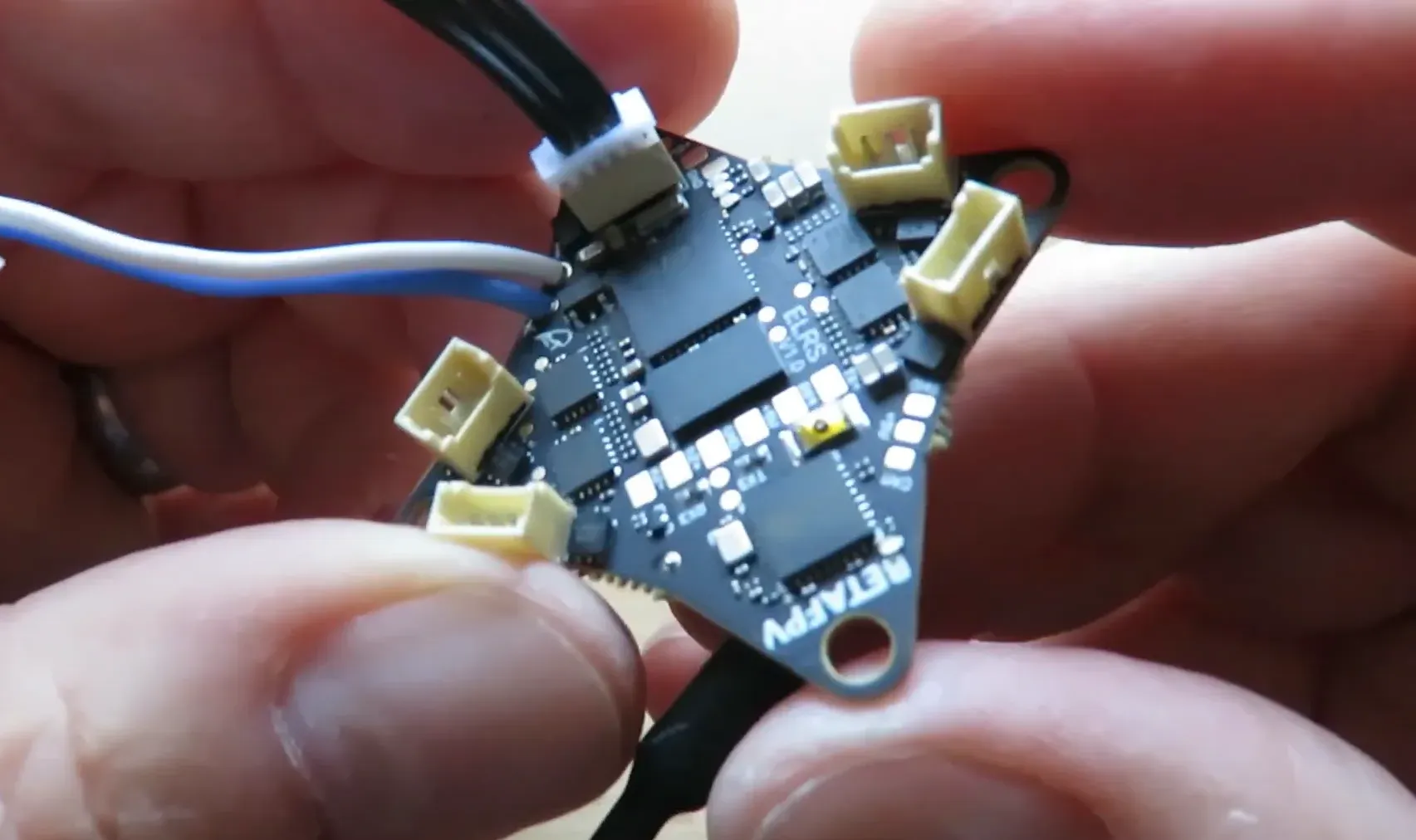

Painless360 recently unveiled an exciting new flight controller from BetaFPV, designed specifically for Whoop drones. This innovative 5-in-1 board integrates a flight controller, video transmitter with OSD capability, ESCs, and an ExpressLRS receiver, making it a versatile choice for hobbyists.
Overview of Features

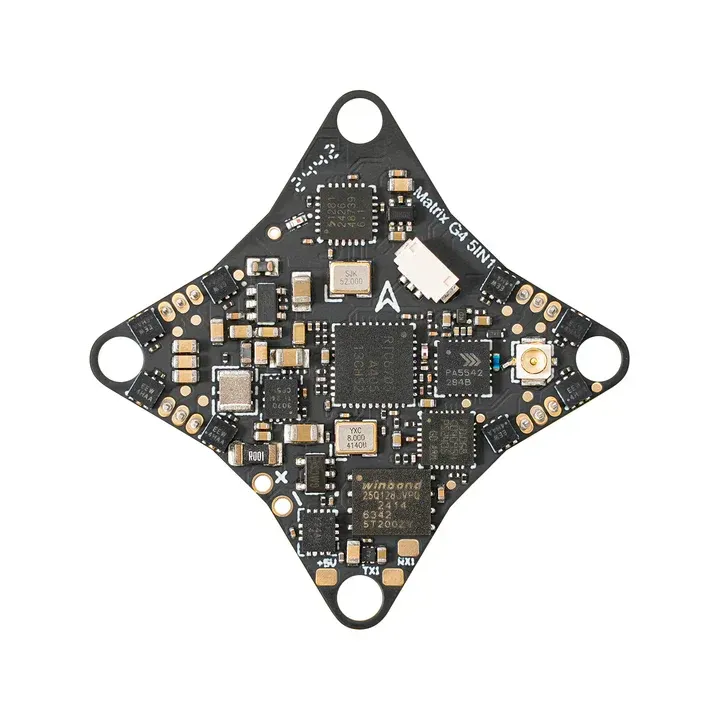

Aside from an upgraded design, the BetaFPV MATRIX 5in1 Whoop FC comes with some impressive specifications:
- Processor: SM32G473, providing approximately 50% more performance compared to older models.
- Gyro: ICM42688P with 16MB black box memory.
- Voltage and current sensing: Essential for monitoring battery status during flight.
- UART Ports: Four UARTs for flexible connectivity (UART 1 and 4 are free, UART 2 for VTX, and UART 3 for the receiver).
- VTX Output: Up to 400mW, ideal for both indoor and outdoor flying.
- Weight: Approximately 3.92 grams, making it lightweight for optimal performance.
Technical Specifications
The flight controller has some particularly impressive technical specifications:
- Power Connector: BT 2.0, widely used in modern setups.
- Camera Port: Compatible with various camera setups.
- Speed Controllers: 1S only, with 5A continuous and 8A peak ratings.
- Firmware: Bluejay firmware supporting DShot 300 and 600.
- VTX Frequency: 5.8 GHz with 48 channels including race band.
Setup and Configuration

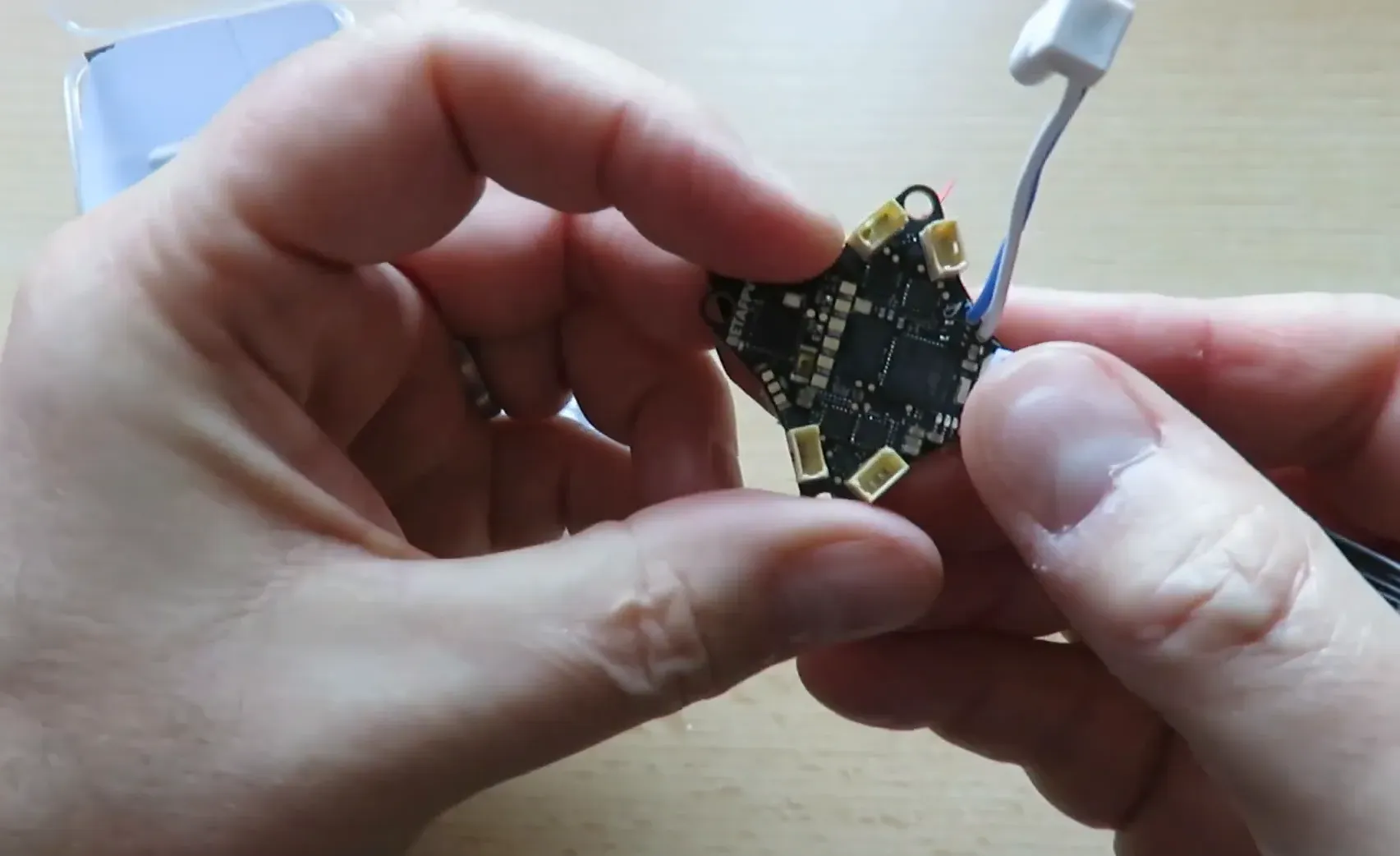

The installation course of Painless360 was such that at the end of it, all Whoop builds could be easily integrated with the MATRIX FC. Also, the USB port for the board was expressed as an external board which made it look neat and allowed easy access for making any changes in the configuration.

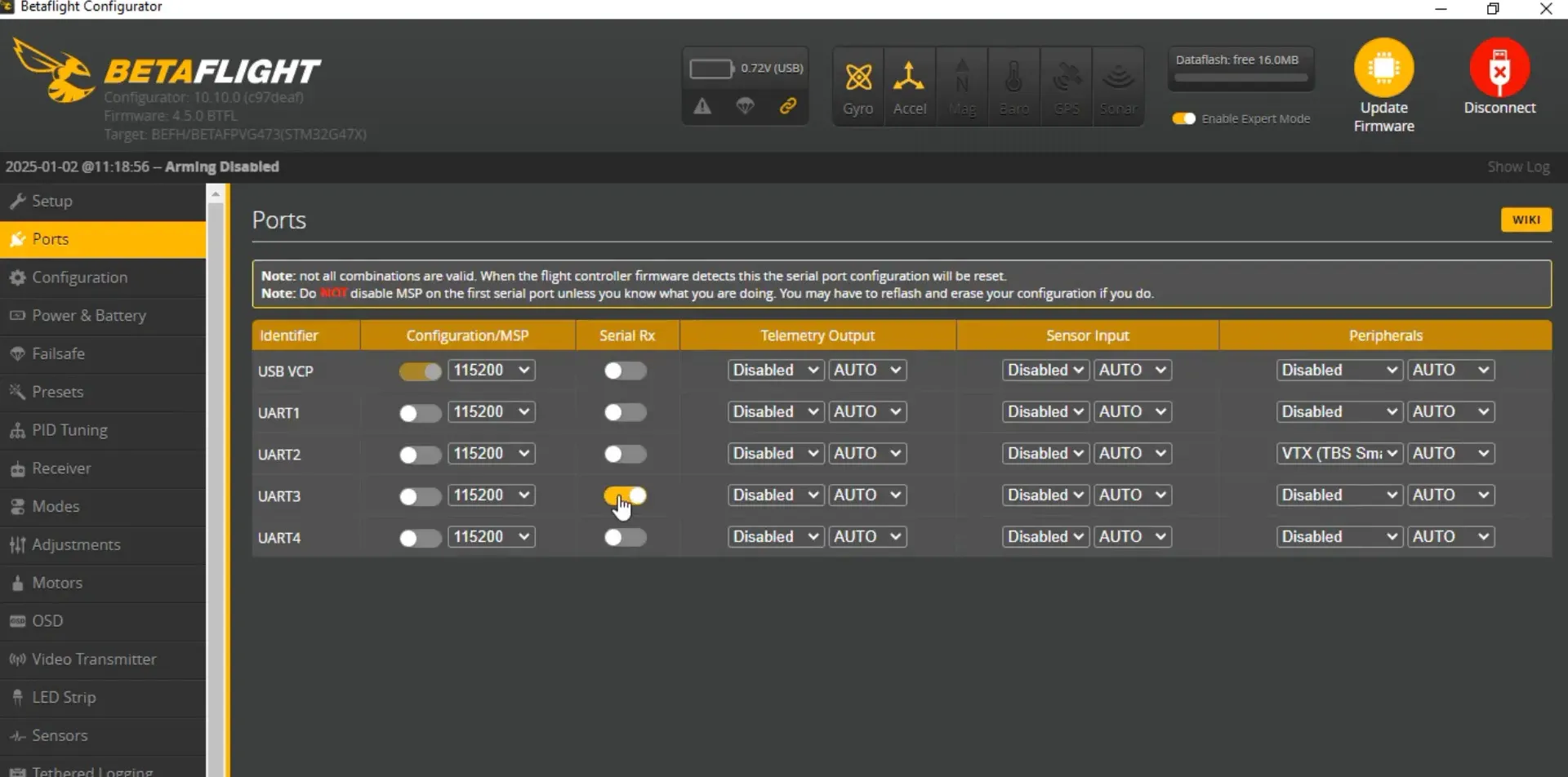

The default configuration includes:
- 8k gyro and 4k PID loop frequency, using Betaflight 4.5.
- Smart Audio configured for UART 2, facilitating easy VTX adjustments.
- Receiver settings set for CRSF, enabling compatibility with various controllers.
Performance Insights
This flight controller is not merely a set of specifications; it is a performance machine indeed. The amalgamation of a high-performance CPU and cutting-edge firmware makes it possible to manifest linear flight regardless of whether you are a rookie or an experienced pilot. The all-in-one integration of the functionalities grants you a neat installation, thereby cutting down the jumble of several separate parts.
Conclusion
The BetaFPV MATRIX 5in1 Whoop FC is the best option for the people who wish to transform their Whoop drones into something greater. It is the first all-driver format whoop flight controller that has this 5in1 built in. Compact, it offers powerful processing plus integrated features, and represents a good evolution in drone technology. For the fans of building a Whoop or upgrading, an existing setup, the flight controller should be a priority to look at.
FAQ
1. What is the primary advantage of the BetaFPV MATRIX 5in1 Whoop FC?
The major benefit of it is that the design is all-in-one and combines different elements on a single board. The consequence of this is that installation is simplified and the constituent part is decreased.
2. Can I use this flight controller with any Whoop chassis?
Correct, if the chassis is compatible with a 1S configuration and has the suitable assembly points, the part would be fine.
3. How does the VTX performance compare to standalone options?
The built-in VTX is capable of delivering as high as 400mW, thus it is equally impressive as standalone options and can be utilized in diverse flying conditions.
To gain more insights, you should definitely watch the original video by Painless360 and visit the BetaFPV website to browse through their complete collection of items.
