The SEQURE Heison 5x is gaining attention in the FP drone community for its characteristics and sturdy construction quality.In this article we will delve into the aspects that set this drone apart. From its cooling mechanism, to how it performs with 8 cell batteries.
Sequre is swinging for the fences with this one!

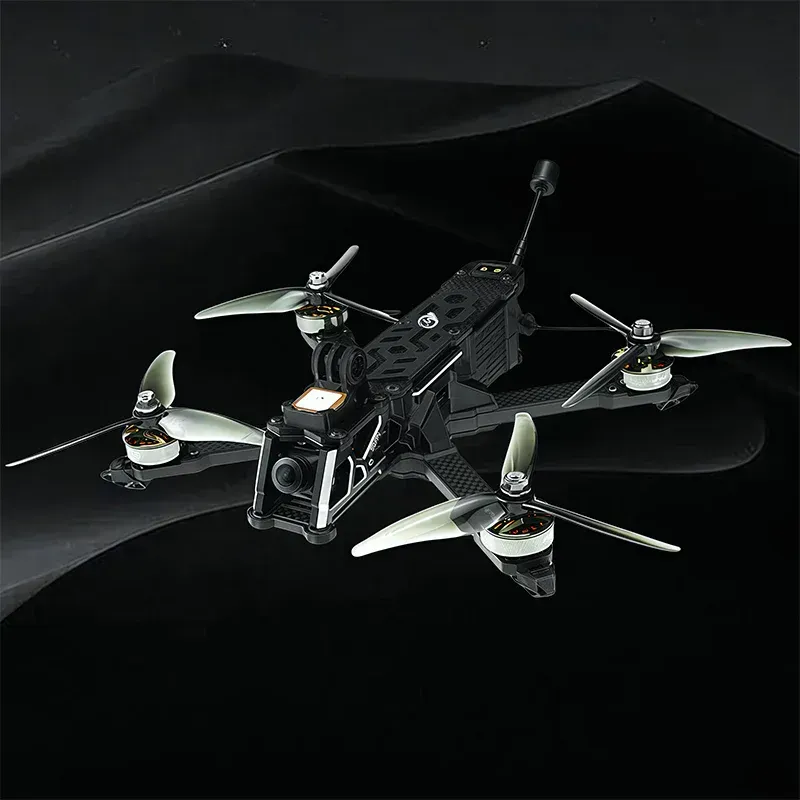

SEQURE is really stepping up the game, with the Heison 5x drone! It's not another FPV drone in a crowded market – its looking to shake things up and set new standards in the industry! Featuring elements such as an integrated cooling fan, for the O3 air unit SEQURE is definitely pushing innovation and performance to heights.
By adding a cooling fan to the design of the O4 air unit, for FPW drone users benefit and tackling the problem head on shows SEQUREs dedication to improving user satisfaction and operational efficiency in a clever way that goes beyond just flying—it's, about flying with intelligence in mind.
What makes the Heison 5X so remarkable!
The Heison 5x is remarkable, for reasons; notably its distinct blend of of the line parts and inventive design features stand out among the rest in the market today.
This drone offers two motor KV choices; 1850 KV for 6 cell batteries and an impressive 1600 KV for 8 cell batteries—the versatility caters, to pilots of all levels seeking a flight experience.
Side plates make maintenance more difficult?
The sleek design of the Heison 5x is enhanced by its side plates; however maintaining it can be challenging as accessing components, like the receiver or performing tasks may prove difficult due, to the space created by these plates.
. The design permits the side panels to be detached easily to address certain maintenance worries. Individual users can take them off without having to break down the drone; however; it is crucial to exercise caution while operating in confined areas.
Soldering and build quality
The craftsmanship displayed in the solder joints of the Heison 5x is truly remarkable; they are clean and shiny, with a level of attention to detail apparent in every connection made.The wire routing is tidy and well organized which not improves the appearance but also minimizes the chances of any snags occurring during use.
When it comes to drones, like the Heison 5x model made solder connections play a key role in how well they perform overall You can tell that this drone was put together with attention, to detail and craftsmanship Users can feel assured of its dependability based on its assembly quality
H743 Flight controller and AM32 ESC
This drone runs on the H743 flight controller that has a reputation, for being sturdy and adaptable to situations in the air. It offers flight modes to cater to flying styles ranging from leisurely flights, to more competitive ones. The processor is designed to stay relevant in the future by ensuring it can work with firmware updates.
Moreover_ the AM32 ESC integrated into the Heison 5_X provides a basis, for performance_ as it comes pre loaded with the required firmware to spare users from the inconvenience of manual updates._ This blend of cutting edge elements lays the groundwork, for a flying adventure.
Available with both O3 & analog; ELRS 2.4 and 900 MHz.
The Heison 5x provides video transmission options to suit the preferences of both analog enthusiasts.With options, like the O5 air unit or a 1..15 WT analog video transmitter users can customize their setup according to their flying style.
Additionally the drone comes with Express LRS choices, in both 2.4 gigahertz and 918 megahertz frequencies providing coverage and improved signal reliability. This diverse selection guarantees that each pilot can discover a setup that meets their requirements.
A fatal flaw in the arm durability
Although the Heison 5x boasts capabilities and functionalities that make it stand out in the market there is a concern regarding its arm durability. The construction includes a pathway, for motor wires, which has the potential to impact the strength of the arms. Despite their appearance the decrease, in thickness caused by this pathway could result in susceptibility to damage when engaging in flight maneuvers.
The screws that secure the cover are placed close, to the edges of the arms well which could potentially weaken them more significantly.This design decision may lead to breakage issues, for pilots who tend to push their drones to the edge.
LED and film projector!
The Heison 5x comes with a variety of LEDs that bring a visual touch to the drones design while also offering useful advantages for easy spotting when flying.
Although the quantity of LEDs might not meet everyones expectations; the ability to customize them enables pilots to showcase their style effectively on their drone. A small yet captivating detail that contributes to its overall charm.
USB cable doesn't fit in side plate
There's a design flaw where the USB connector doesn't fit well through the hole, in the side plate of the device. This might cause inconvenience, for users attempting to connect to the Betaflight configurator using USB cables.
This problem might require making some changes or trying out cables which isn't the best solution, for an otherwise well crafted product.
Ships with un-released BF 4.6???
The Heison 5x also comes with a release edition of Betaflight 4.6 which brings an element of surprise as well, as the potential for bugs and stability problems since it is, in progress.
Users might have to depend on versions to adjust their drones which might not be the intuitive method for all users to follow through with this could be a mixed blessing providing state of the art functionalities but also carrying potential hazards.
A few things they did right
While there are a few imperfections, in the product line of SEQUREs Heison 5x model and its features like the cooling mechanism for the O2 air system and the versatile motor selections alongside a keen focus, towards soldering excellence truly stand out as remarkable attributes to be appreciated.
Furthermore the ability to customize aspects, like LED lighting adds a touch of personalization that numerous pilotsre likely to find appealing in the Heison 5x drone model despite some room for enhancement which indicates its potential as a contender, in the FPVF drone sector overall.
Receiver Powers Up from USB; GPS Does Not
The Heison 5x receiver starts up smoothly using the USB connection. A feature, for setting up though its worth mentioning that the GPS unit doesn't switch on through USB power which could be a concern, for users expecting all parts to sync perfectly during setup.
Usually people prefer to have the GPS connected to the network while keeping the drone powered off to avoid any issues, with interference since the GPS is placed at a distance, from the antenna.
How to Configure AM32 ESC
Configuring the AM32 ESC is simple and easy, with its user interface! Begin by disconnecting the power and accessing the ESC configurator via a website link for setup steps ahead of you, on Betaflight interface selection through the correct serial port.
Once you're linked up to the system you can check out the ESC settings. If you don't have any adjustments, in mind sticking with the factory settings is usually good enough since they're already set up for performance, from the start.
Change the Battery Cell Count Option!
A key factor to keep in mind is the battery cell count when using Betaflight software. Betaflight doesn't inherently detect the number of cells in your battery; rather it makes an estimate based on the voltage it receives from the main discharge lead. This estimation method may result in inaccuracies when dealing with cell counts due, to overlapping voltage ranges.
To avoid potential battery damage, it's essential to manually set the battery cell count in the Betaflight CLI. By typing the command set force battery cell count = 8, you can ensure that Betaflight recognizes your battery configuration correctly.
It's Heavy. Or Is It?
The Heison 5x is, on the side compared to drones in the 5 inch category as it weighs approximately 750 grams without a camera onboard—a weight that places it towards the upper range of similar drones in its class.When equipped with a GoPro camera the total weight can go up to 950 grams—showcasing an increase, in weight.
Pilots usually prefer setups, for their aircraft; however the 8 cell configuration offers voltage, for improved power control even with the extra weight involved. This special benefit enables setups to excel questioning the belief that lighter is consistently superior.
Switches to Turn Fan On and Off
The Heison 5x is equipped with dip switches that manage both the fan and the built in projector functions onboard which users might miss at glance This oversight could potentially cause confusion if the fan doesn't work as anticipated Activating the fan is crucial to optimize the drones performance as it helps prevent overheating during flight operations
Before taking off on a flight it's an idea to make sure the fan is running. This small action can greatly help in keeping the temperature at the level, for operation.
Flight Test on 8S!
The recent flight demonstration using the 8 cell configuration really highlights the power and agility of the Heison 5x drone model. Pilots will notice the thrust, to weight ratio as they maintain a hover at 16% throttle. The excitement peaks, during ascents showcasing the potential of operating with an 8 cell setup.
Despite having a setup onboard the drone still handles exceptionally well enabling daring aerial maneuvers without any major disruptions, from prop wash. Although achieving precise flying might necessitate some tweaks because of the added power the overall flying experience remains highly gratifying.
Poor GPS Performance. Why?
During the flight trials of Heison 5X drone model caught attention with its GPS performance being subject, to scrutiny for locking onto seven satellites at an HDOP level of 2.. It managed to improve by connecting with ten satellites at an HDOP of 1.. The community anticipated results, from a drone featuring the N10 GPS technology.
The placement of the GPS, in the front of the drone aims to boost its performance; however the findings imply that there could be potential for enhancement, in this aspect.Users should take note of this factor when evaluating the suitability of the Heison 5x for tasks that necessitate dependable GPS functionality.
Flight Test with GoPro Weight
Adding a GoPro to the Heison 5x drone definitely changes how it flies! The hover throttle goes up a bit to 18% showing the difference the extra weight makes on its performance level. Even though the drone still does in flight tests after adding the GoPro camera its overall feel shifts a bit. It's not as speedy and powerful anymore and starts to resemble more of a typical 5 inch drone.
This change, in performance showcases the balance between weight and maneuverability, in action drones.The drone maintains its speed and agility. Lacks the responsiveness experienced when its lighter.Nevertheless it still surpasses drones in its class despite the weight.
Durability Test
The durability of the Heison 5x was tested by to a series of controlled crashes, for evaluation purposes The first collisions showed that even though the drone incurred some damage in appearance tone damage, to its structure was sustained However during a less forceful landing the battery connection did pop out highlighting potential design improvement areas
Following trials included releasing the drone from the top of a tree which led to scratches but no major malfunctions were detected. Although the arms remained intact during the experiment it is indicated that they might not endure high energy impacts. Individuals should take this into account when evaluating the drones resistance over time.
The SEQURE Heison 5X stands out in the FPV drone market with its innovative features and robust performance. Key highlights include an integrated cooling fan, various motor options, and an advanced flight controller, making it an excellent option for both novices and seasoned pilots. While there's potential for improvement in arm strength and design, the overall build quality and meticulousness are impressive. It's a significant pick for FPV aficionados seeking technologically forward drones, blending power and functionality. The Heison 5X represents an exciting future for SEQURE in the ever-evolving world of FPV flight, whether for executing daring stunts or capturing breathtaking aerial views.
