The FrSky X14 is marketed as an entry-level radio controller, but it packs a punch with features that will appeal to both drone enthusiasts and fixed-wing pilots alike. Ian from MadsRC dives deep into this radio, offering a comprehensive overview of its specifications, features, and functionalities. Let’s unpack what makes this radio special, what it lacks, and whether it’s worth your investment.

Unboxing the FrSky X14

Upon opening the box, users are greeted with the radio itself, a comfortable neck strap, a sticker pack, and a support card that provides information about the radio and links to the manual. The kit also includes the TW mini receivers that are designed for smaller quads and planes, supporting the twin protocol.

Unboxing the FrSky X14

Design and Build Quality

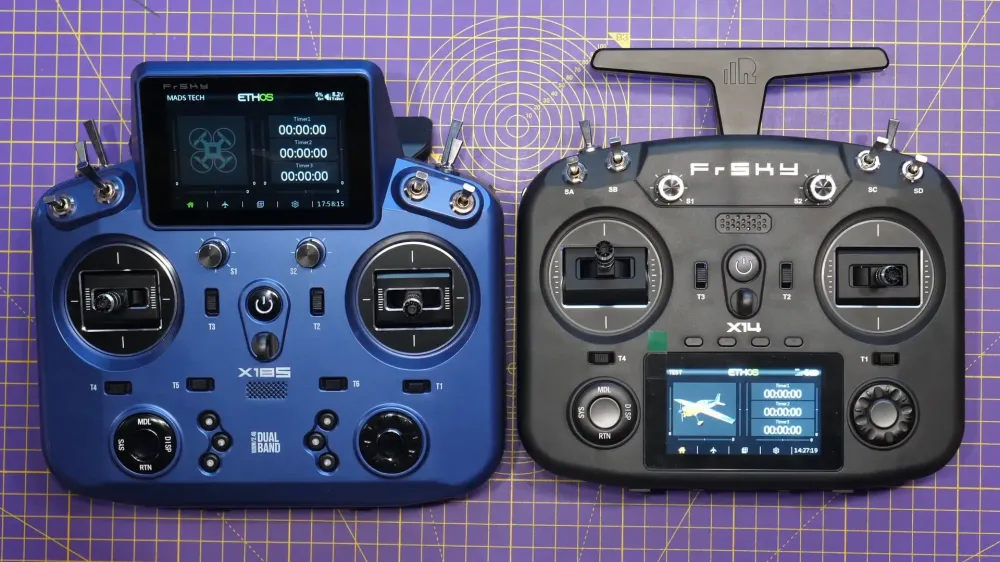

The X14 features a standard version equipped with high precision hall gimbals. The gimbals are a mix of metal and plastic, designed to provide accuracy and durability. While the overall build quality is solid, Ian notes some minor inconsistencies compared to the premium X18 model, such as slight rattling in the control knobs and uncentered potentiometers.

Close-up of the gimbals

Physical Features

  • Momentary latching toggle on the left and a two-way toggle on the right.
  • Four three-position toggles on the front.
  • Two control potentiometers in the middle.
  • Four trim switches and programmable switches that can act as two separate controls.
  • Dedicated buttons for model, return, system, and display.
  • Rotary wheel and button for easy navigation.
  • Fixed antenna that acts as a handle but lacks folding capability.

While the design caters well to both drone and fixed-wing users, some users might find the fixed antenna cumbersome.

Operating System: Ethos

The X14 runs on the Ethos operating system, which Ian praises for its user-friendly interface. The radio includes a color screen (not touchscreen) with a resolution of 640x360. Most controls are handled via buttons, making navigation intuitive.

Ethos operating system interface

Main Features of Ethos:

  • File management and alerts.
  • Battery and hardware information.
  • Telemetry and logical switches.
  • RF system binding and configuration.

Ian highlights that the layout of Ethos is more logical than some competitors, making it easier for users to find their way around.

Wireless Trainer Functionality

The built-in wireless trainer function allows for easy connection between two radios. Setting up the master and slave modes is straightforward, enabling seamless control transfer during training sessions.

Wireless trainer setup

Receiver Overview

With the X14, users receive the TW mini receivers designed for small quads. These receivers feature dual 2.4GHz antennas and can operate on a voltage range of 3.5 to 10 volts, which is broader than many competitors.

Overview of the TW mini receiver

The Twin System Explained

One of the standout features of the X14 is its use of FrSky's twin system, which transmits signals using two different protocols: FSK and LoRa. This dual transmission enhances signal reliability, especially in areas with interference.

Performance Insights:

  • Frequency and modulation redundancy improve signal integrity.
  • Real-time monitoring of data packets provides insights into transmission strength.
Twin system performance analysis

Binding Process

Binding the receiver to the radio involves a two-step process of registration followed by binding. This ensures a secure connection, which is particularly beneficial in crowded environments.

Binding process overview

Compatibility with External Modules

The X14 includes an external module bay, allowing it to work with systems like ExpressLRS. However, users need to install a Lua script, which can be a bit technical for beginners.

Internal Build Quality

Ian takes the radio apart to reveal the internal components, showcasing the quality of the PCB layout and the overall build integrity. The internal components are neatly organized, with no visible signs of poor craftsmanship.

Internal build quality of the X14

Final Thoughts

Overall, the FrSky X14 offers a compelling package for those looking to join the FrSky ecosystem without breaking the bank. Priced just under $180 in the USA and £166 in the UK, it provides excellent value for entry-level users while maintaining many features found in higher-end models.

Pros:

  • Robust build quality.
  • Versatile operating system.
  • Dual transmission system enhances reliability.

Cons:

  • Fixed antenna may be less convenient.
  • Minor build inconsistencies compared to premium models.

For anyone looking to enter the world of FrSky, the X14 is a noteworthy contender. Ian encourages potential users to consider it, especially if they seek a balance between quality and affordability.

FAQ

What is the price of the FrSky X14?

The standard edition is priced under $180 in the USA and just under £166 in the UK at Unmanned Tech.

Can I use ExpressLRS with the X14?

Yes, the X14 supports ExpressLRS but requires installing a Lua script for setup.

What is the difference between the standard and S versions of the X14?

The S version includes additional onboard storage and full CNC metal gimbals, providing a higher quality feel.

For more detailed insights and visuals, check out Ian's full review on his YouTube channel MadsRC.
