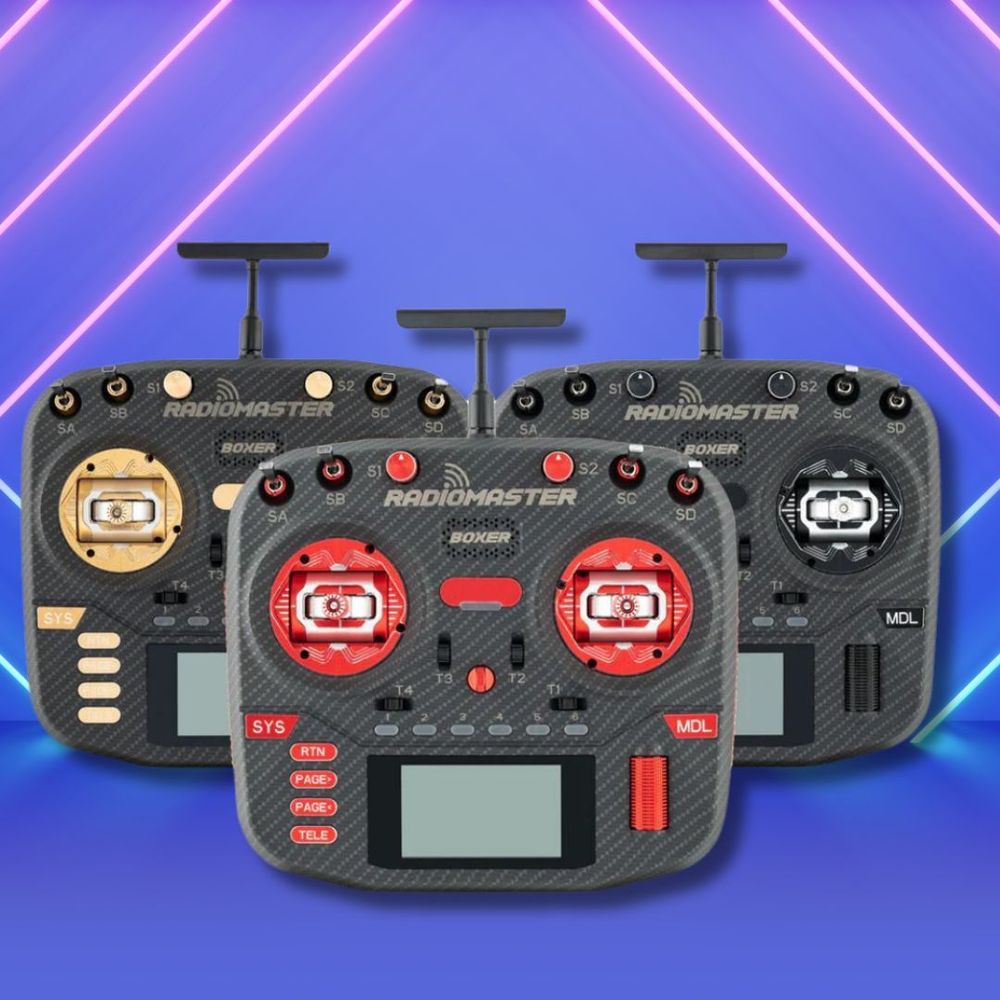

Radiomaster Boxer MAX: The Controller That'll Make Your Drone Feel Inadequate

Discover the Radiomaster Boxer MAX: The ultimate FPV controller that's redefining drone piloting. Get ready to soar like never before!

10 months ago   •   4 min read

By Alex
Table of contents

Radiomaster, the illustrious maestros of all things remote-controlled, have thrown a delightful curveball into the merry realm of hobbyist drone wranglers. Behold their latest creation, the Radiomaster Boxer MAX Edition! A concoction so cunningly crafted that it could make even your trusty old toaster feel outdated. Building upon the stellar success of their beloved Boxer series, this MAX Edition isn't just another drone controller; it's the Batmobile of the FPV skies, here to whisk you away on aerial escapades that would make Bruce Wayne envious.

What's New in the Boxer MAX Edition?

Carbon Fiber Pattern Case: The Boxer Max Radio boasts a stylish carbon fiber pattern case that not only looks sleek but also provides added durability.

AG01 Hall Gimbals: Radiomaster has installed AG01 hall gimbals as standard, ensuring precise control and a satisfying tactile feel.

CNC Buttons and Roller: The MAX Edition comes with CNC machined buttons and roller, providing a premium touch to your controller.

Adjustable Length CNC Metal Folding Stand: This feature adds versatility to your setup, making it easier to find the perfect angle for comfortable flying.

Upgraded Leather Grips: Radiomaster has gone the extra mile by including upgraded leather grips, offering a superior grip and comfort during long flying sessions.

ExpressLRS RF Modules: For those seeking top-notch connectivity, the MAX Edition offers models with built-in ExpressLRS RF modules.

Powerful STM32F407VGT6 Processor: Under the hood, you'll find a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM, ensuring smooth operation and rapid response.

EdgeTX Firmware: Radiomaster has preinstalled the EdgeTX firmware, providing users with cutting-edge features and customization options.

Adjustable ELRS RF Output: The internal ELRS module supports a remarkable 1,000Hz refresh rate, giving you an edge in precision and control.

Fast Charging Support: With QC3.0 fast charging support, you can quickly recharge your controller with a 2.0A MAX output.

Extended Battery Life: The MAX Edition features an oversized battery compartment that can accommodate a 2S 6200mAh pack, offering up to 20 hours of flying time (batteries not included).

Compact Ergonomic Design: Radiomaster has designed the Boxer MAX Edition for maximum comfort during extended flying sessions.

New Low-Profile Switches: Enjoy a low-profile latching SE switch and a momentary SF switch for added convenience.

Internal Cooling Fan: The ELRS version of the controller comes with an internal module cooling fan, ensuring optimal performance during intense flights.

Versatile 6-Position Switch: Access various flight modes easily with the versatile 6-position switch.

Changeable Antenna: The adjustable and removable T-shape antenna lets you fine-tune your signal reception.

Improved Storage: Radiomaster has redesigned the SD card slot and included a 512MB pre-loaded SD card for your convenience.

External Module Power Slots: The battery cover features external module power slots for added flexibility.

Comprehensive Package: Radiomaster doesn't stop at just the controller. The Boxer MAX Edition comes with a signature carry case and gimbal protector as standard, ensuring your investment stays safe while on the move.

Technical Specifications

  • Color: Available in Black, Red, and Gold
  • Size: 235 x 178 x 77mm
  • Weight: 532.5g
  • Frequency: 2.400GHz-2.480GHz
  • Internal RF: ELRS 2.4GHz
  • Supported Protocols: Module dependent
  • Cooling Fan: Built-in (ELRS version)
  • Voltage Range: 6.6-8.4V DC
  • Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
  • Channels: Max 16 channels (Receiver dependent)
  • Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
  • Display: 128x64 Monochrome LCD display
  • Gimbal: AG01 CNC Hall Gimbal
  • External Module Compatibility: JR / FrSKY / Crossfire compatible
  • Upgrade Method: USB / SD card & EdgeTX Companion PC software

Radiomaster's Commitment to Open Standards

Radiomaster's collaboration with the EdgeTX and ExpressLRS teams is a testament to their commitment to open standards and continuous improvement. By working closely with these communities, they ensure that users have access to the latest features and a seamless flying experience.

With the Radiomaster Boxer MAX Edition, drone enthusiasts can expect nothing but the best in terms of performance, comfort, and customization. Whether you're a seasoned pilot or just starting in the world of drones, this controller is designed to elevate your flying experience to new heights.

To learn more about the Radiomaster Boxer MAX Edition and to get your hands on one, visit Unmanned Tech Shop. Fly higher, fly smarter with Radiomaster!
