Its like a 65mm Toothpick but bigger but is bigger better?

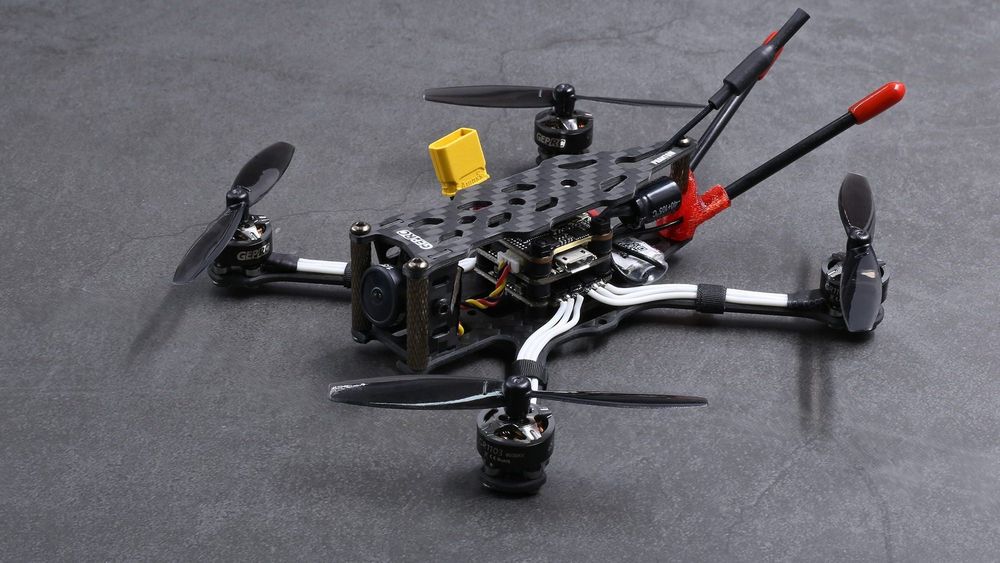

The PHANTOM is a mini freestyle quad supporting either 65mm or 2.5inch propellers on GR1103 8000kv motors. The build can either run on a 2S 450mah or 3S 300mah lipo.
The 16x16mm stack comes complete with:
- F4 FC
- 12A 4in1 ESC
- 200mW VTX
You can either buy :
PNP (Plug and Play) and add your own Receiver.
BNF ( Bind and Fly) fitted with an Frsky XM+ Receiver.
- UnmannedTech UK (Coming Soon)
- GEPRC
Just remember this is a toothpick build and the lighter the better.
See below for a full list of the specifications:
- Name: PHANTOM
- FC:STM32F411
- ESC:12A(BLheli_S)
- Motor: GEPRC GEP-GR1103 8000KV(3S 300mAh) or 5500KV(4S 300-450mAh)
- Wheelbase: 125mm
- Propeller: 65mm or 2.5inch
- VTX:5.8g 200mW
- Camera:Caddx EOS2
- Weight: 51g (without battery)
STABLE F411 Flight Controller(16*16mm)
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@2A
- Size: 21mm*21mm
- Mounting holes: 16mm*16mm
- Integrated LC Filter
- Input voltage 2-4S LIPO
- Firmware target: MATEKF411
- Weight: 2.5g
STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)
- MCU: BB21F16G
- Continuous current: 12A
- Input voltage : 2-4S LIPO
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Size: 23mm*21mm
- Mounting hole 16*16mm
- Firmware target: Blheli_S G_H_30
- Current meter: 210
- Weight: 2.7g
STABLE F411 VTX 5.8G 200mW(16*16mm)
- Power : PIT/25/100/200mW
- Antenna interface : IPEX (UFL)
- Telemetry: IRC Tramp
- Size: 17mm*27mm
- Mounting holes: 16*16mm
- Integrated LC Filter
- Weight: 1.6g
Summary
This little guy in small, light and fun to fly so whether your looking for a first time buy and what to start with something small or looking to add something fun to your fleet.
The Phantom could be for you?
