Diatone GT X549 - A Moulded Carbon FPV Quad

6 years ago   •   2 min read

By Alex

Looks like Diatone is picking up there game. Look at this thing its beautiful made from Toray Carbon, but will it be strong enough to stand up to the abuse of FPV. Will you fly it or just mount it on your wall and admire it?

A quick look at the parts and they are not holding back, the X549 uses the new Mamba F722 Mini Stack, 35Amp 4in1 and a choice of Tmotor Motors.

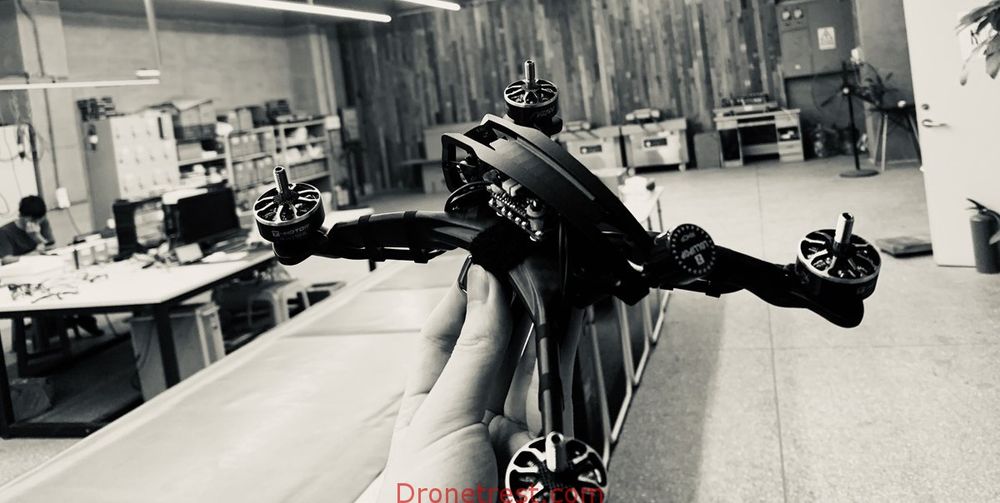

GTX549

Where to Buy

The Diatone are selling the quad as a PNP kit or as a frame on its own.

Right lets have a look parts in a bit more detail and see how much bang your getting for your buck…

Frame

  • Materials: Toray Carbon
  • Fiber: 70% T700, 30% T900
  • Aluminium Allow: 100% 7050
  • Motor Mounts: 16x16mm M3
  • Camera: 19mm
  • Weight: 92g

What Is Toray Carbon?

For those who don’t know, Toray is one of the worlds largest manufacturers are carbon fibre products, so rather than using some generic carbon fibre, the GT X549 uses top tier carbon that has undergone a proper and audited manufacturing process. So it is probably abit stronger and nicer looking, but it could also be a gimmick.

The FC

  • MCU: 216Mhz STM32F722RET6 32BIT ( That’s an F7 to the reset of us )
  • IMU: MPU6000 ( Gyro )
  • Baro: No
  • OSD: BF OSD
  • Blackbox: 16M Flash Memory
  • Uarts: 6 Sets ( Loads )
  • Status LEDs
  • WS2812 LED Control
  • Smartaudio support
  • RSSI
  • Buzz included
  • BEC 5V 2A ( loads of capacity for any upgrades )

ESC Specifications

  • Input Voltage: 2~6S Lipo ( 7.4V~25V )
  • Max Continuous Current: 30A
  • Max Burst Current: 35A ( 10 Seconds )
  • No BEC
  • Motor Protocol: Dshot 300/600/1200
  • Mounting: 20mm/M2
  • Fitted Cap: Panasonic High Frequency 470uF/35V

Other Parts

  • FPV Camera Options:
    • Runcam Racer mini
    • Foxeer Predator Mini 4
  • VTX: TBS Unify PRO32 NANO 5G8 ( 25mW, 100mW, 400mW )
  • Props: Gemfan 51466
  • Antenna: TBS Triumph pro
  • Motor Options:
    • Tmotor – MCK 1800kv (6s), 2500kv (4s)
    • Tmotor BMP 2700kv (4s)
